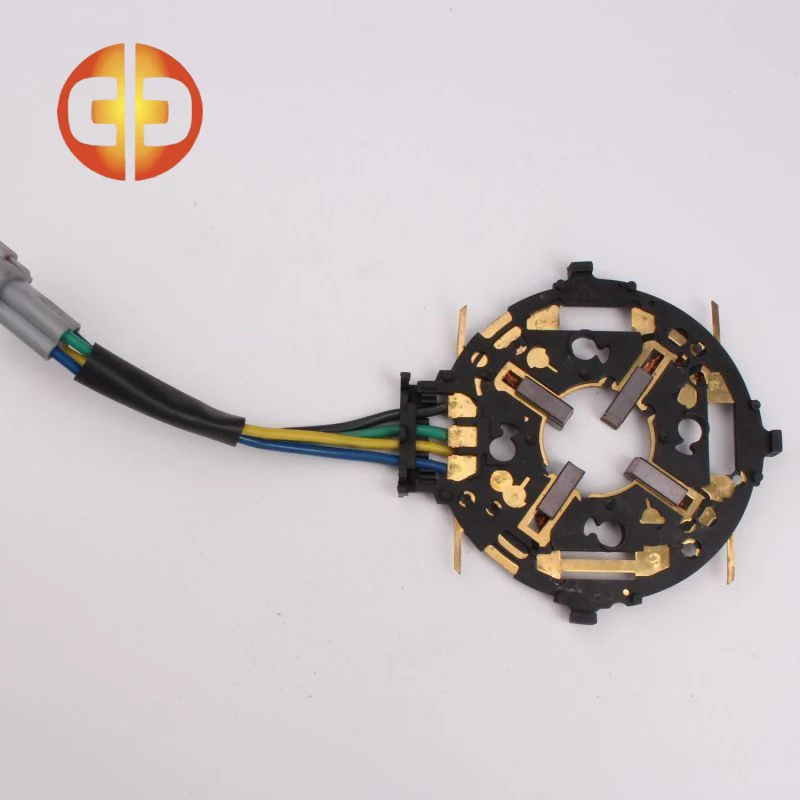

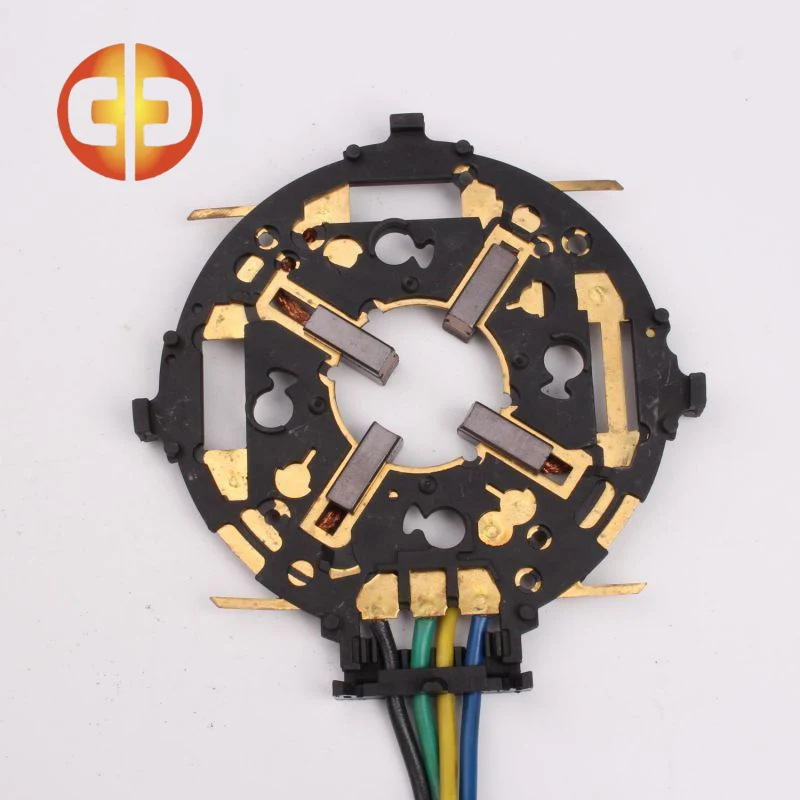

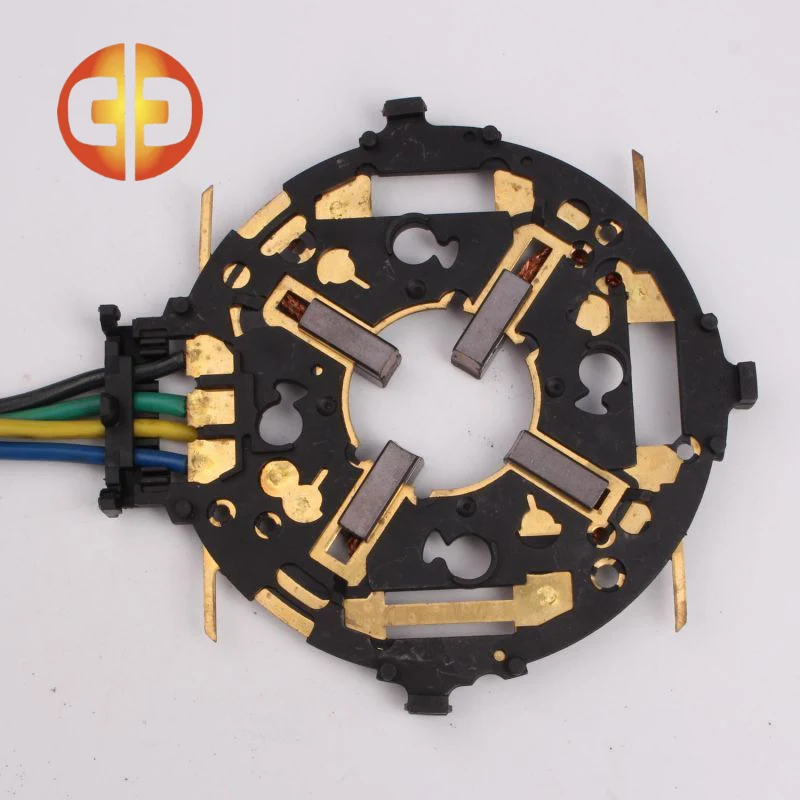

Carbon Brush Holder for Starter Motor

The structure of the Carbon brush holder for starter motor includes a shelf section for holding the carbon brushes and springs in place, ensuring that the carbon brushes remain in a stable position during high-speed rotation and preventing them from falling out or shifting due to vibration.

The Carbon brush holder for starter motor also helps to maintain the cleanliness of the electrodes and rotors, reducing problems with poor contact or short circuits due to contaminants or carbon build-up.

Functional Characteristics

Material Composition:

The carbon brush holder for starter motor usually consists of carbon brushes, springs and racks and other components. Carbon brushes are mainly made of carbon, graphite and other materials, which have good conductivity and wear resistance; springs play the role of cushioning and stabilising the carbon brushes; and racks are used to fix these parts.

Structural design:

The structure of the carbon brush holder is well-designed to ensure good contact between the carbon brushes and the commutator or collector ring, and to reduce the heat and wear caused by friction. In addition, the carbon brush holder has a certain heat dissipation function, which helps to prolong the service life of the carbon brushes and the starter motor.

IMPORTANCE:

Both the carbon brush holder and the carbon brushes are very important components for a starter motor. Even if the characteristics of the carbon brushes are good, if the carbon brush holder is not suitable or malfunctions, the carbon brushes will not be able to give full play to their excellent characteristics, which in turn will affect the performance and life of the starter motor.
