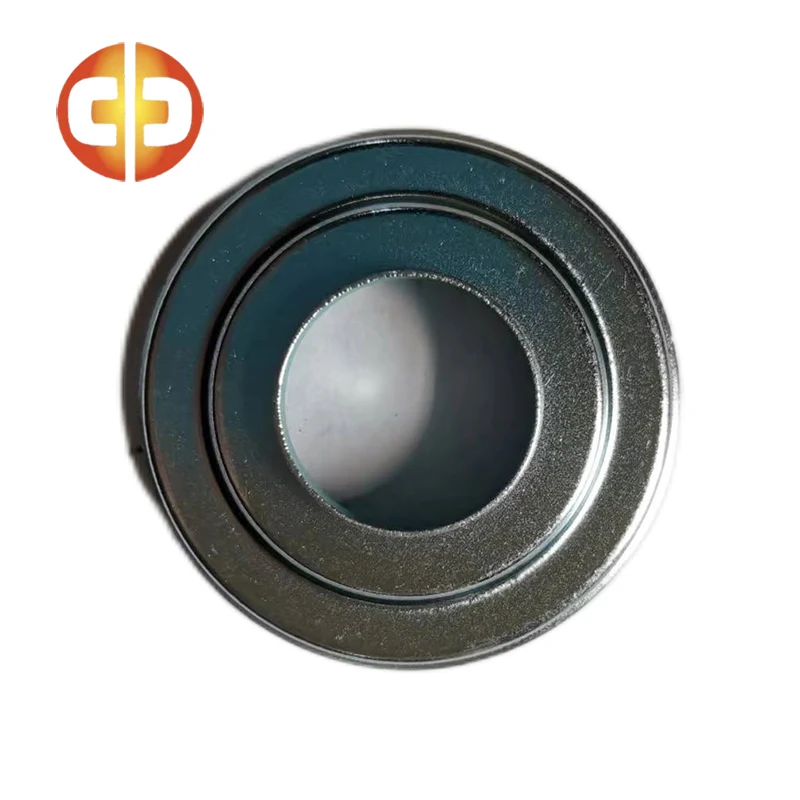

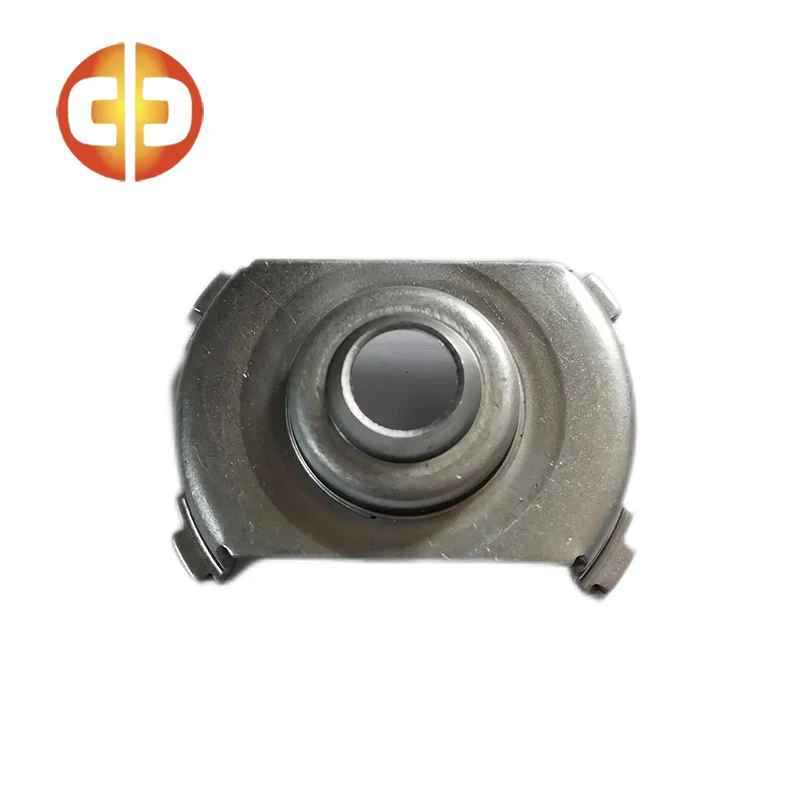

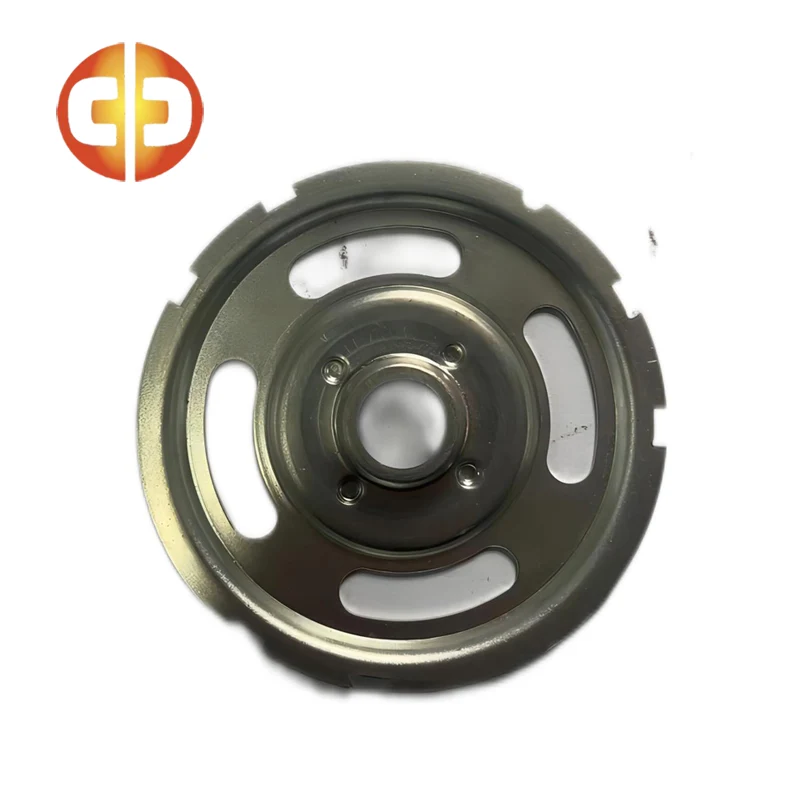

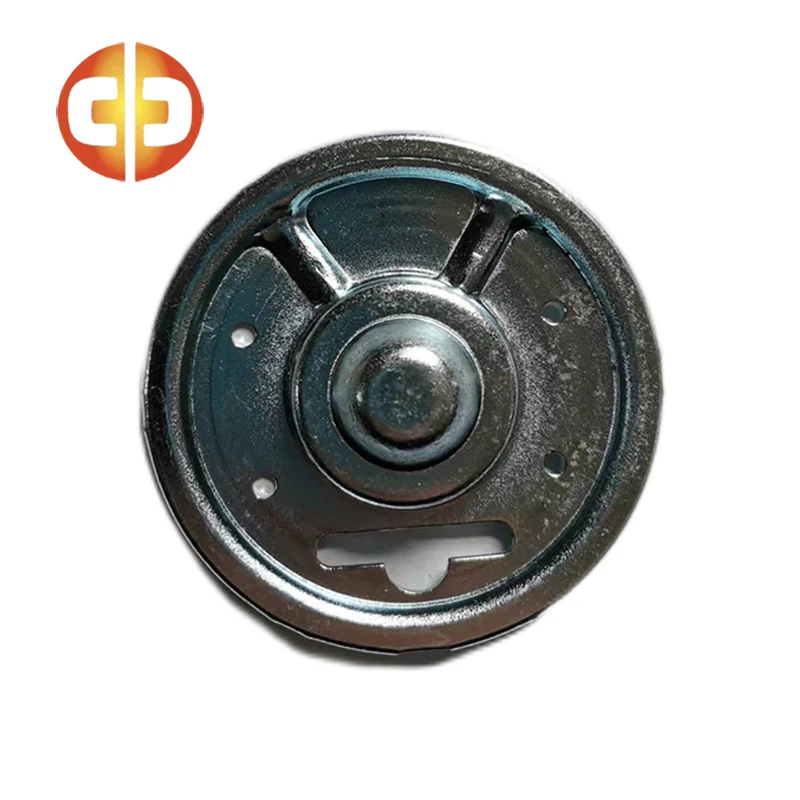

Motor Recessed End Cap

Definition and Function

DEFINITION: A recessed end cap for a motor means that the end cap portion of the motor is designed with a recessed or recessed structure, which is typically designed to house or support certain internal components of the motor, such as bearings, seals, etc.

Function:

Support & Securement: recessed end caps provide support for the rotating parts of the motor (e.g., rotor) and secure these parts by fitting into the motor housing.

Sealing & Protection: The recesses or apertures in the end caps accommodate seals to prevent external dust, moisture and other impurities from entering the motor interior, protecting the motor from normal operation.

Mounting and Connection: The recessed end caps are designed for easy mounting and connection to other components (e.g., cables, sensors, etc.), improving the overall integration and reliability of the motor.

Structural Features

Recessed design: The surface of the end cap has a recessed or sunken structure, which is not only aesthetically pleasing but also helps to optimize the internal layout and heat dissipation performance of the motor.

Material and process: The recessed end caps of motors are usually made of high-strength and corrosion-resistant materials, such as cast iron and aluminum alloy. Manufacturing processes include casting, forging, machining, etc. to ensure the precision and durability of the end caps.

Interface and fit: The end caps are equipped with interfaces that are compatible with the motor shell, bearings and other components, such as bolt holes, bearing seats, etc., to ensure the correct installation and stable operation of the motor.

Application Scenario

Motor recessed end caps are widely used in a variety of motor products, such as DC motors, AC motors, stepper motors, and so on. The design of recessed end caps is especially important in applications requiring high sealing, high integration and high reliability, such as automotive motors, industrial motors, and motors for household appliances.
